Products Description
Thermal resistance is one type of widely used industry thermometer, can be treated as standard thermometer. Thermal resistance with high accuracy and low price, be widely applied for kinds of industries production process which below 500℃.The rtd cable is available in Pt100 and Cu50 types, and they often use insulation such as polyvinyl chloride, PTFE, silicone rubber, and more.
|
Product Name |
Rtd pt100 temperature sensor |
|
Grade |
A or B class |
|
Wire System |
2-wire,3-wire,4-wire |
|
Wire material |
Silicone cable |
|
Diameter |
6mm |
|
Length |
50mm |
|
Tube |
SUS304 |
|
Temperature |
-50 to 200℃ |
technical characteristics
● Pt100 is the suitable type.
● 2-wire,3-wire system is regularly applied. To achieve better precision, 4-wire system is recommended.
● Temperature suggestion and accuracy info please refer to Thermal Resistant Limits Error Chart.
● Our material selections are stainless steel, corrosion-resistant alloy, sleeved PTFE, etc.
● With double rolling grooves,with good water-proof and stable performance.
● With fast response time.
|
Calibration |
Nominal resistance R0(Ω) |
Temperature coefficient of resistance(α) |
Temperature tolerance error(℃) |
|
Pt10 |
10 |
A class 0.003851±0.000006 B class 0.003851±0.000012 |
A class ±(0.15+0.2%|t|) B class ±(0.3+0.5%|t|) |
|
Pt100 |
100 |
||
|
Pt500 |
500 |
||
|
Pt800 |
800 |
||
|
Pt1000 |
1000 |
The connection cable length
|
Cable cross-section |
Max.cable length Pt100 |
Max.cable length Pt500 |
Max.cable length Pt1000 |
|
0.22mm² |
2500mm |
12500mm |
25000mm |
|
0.34mm² |
3500mm |
17500mm |
35000mm |
|
0.50mm² |
5000mm |
25000mm |
50000mm |

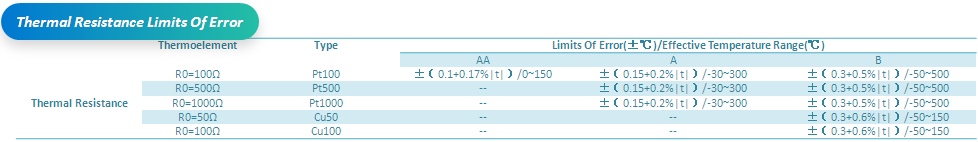

Limit Of Error
Application
It's one of a hot sale type,batch production is available.Both probe specifications and wire length can be customized.This type well applied for various engineering water tanks, boilers, solar energy, and air energy heating, etc.
Product details
Wire diagram
Our Customers

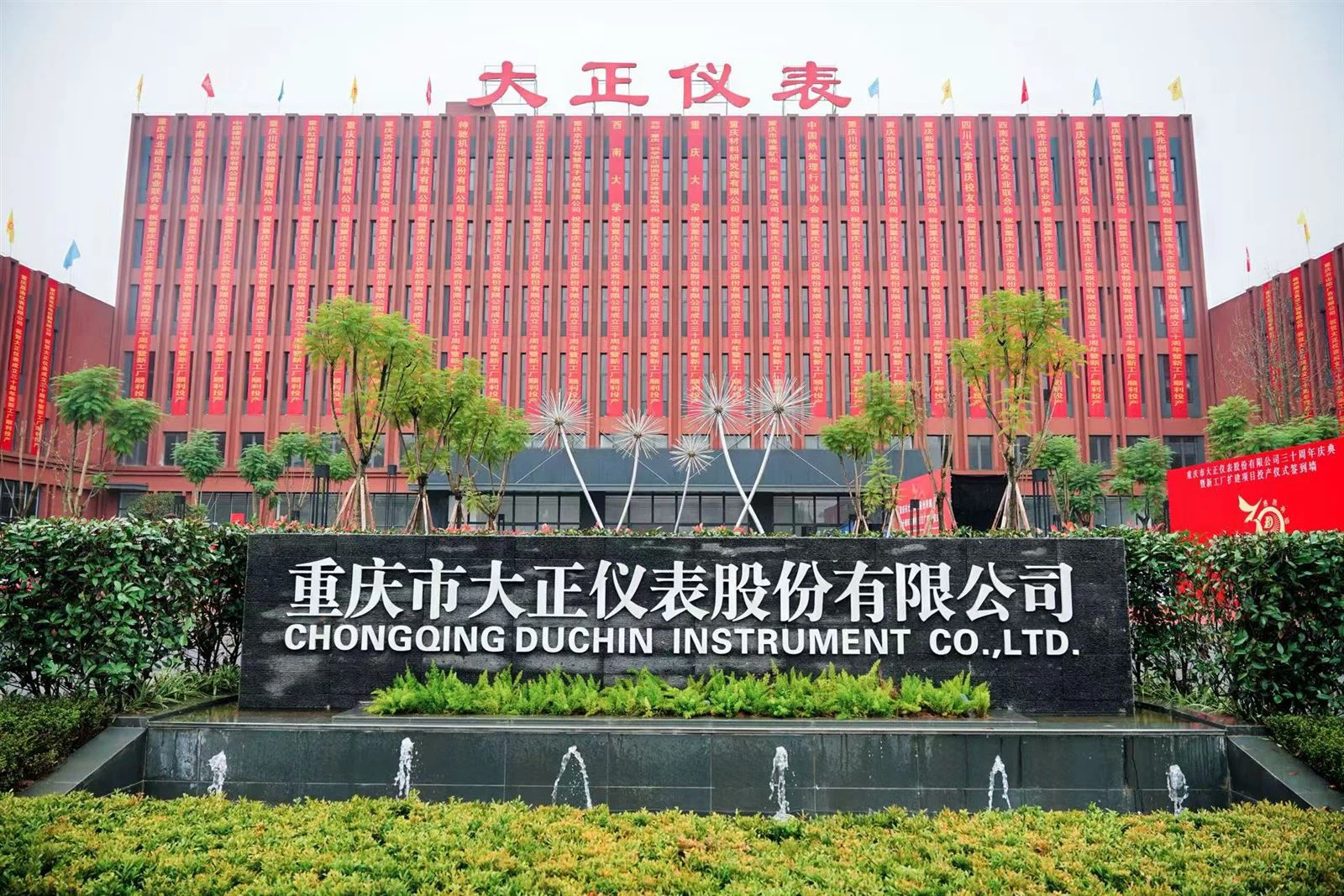

Insights into our company
Insights into our production
Manual Welding
Automatic Welding
Insulation Testing
Laser Marking
Warehouse Managing
Thermocouple Assemble
Vacuum Leak Detection
Surface Polishing
Quality Certifications
