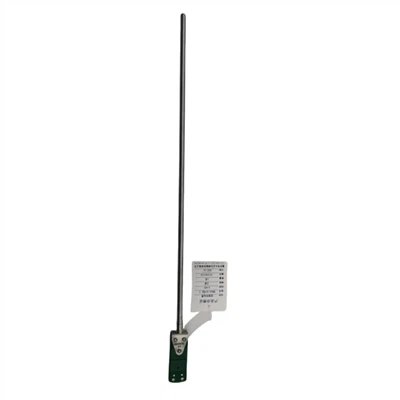

Assemble Noble-metal Thermocouple
What is Assemble Noble-Metal Thermocouple
A thermocouple is a temperature measurement sensor made of two different metals. They may be made of copper or iron, or they may be made of a special metal mixture. Two wires made of different metals are connected at a junction - there is no voltage at the node, which is the same as any two wires you would connect, and no voltage is generated at the connection.
Temperature Range
Most practical temperature ranges, from cryogenics to jet-engine exhaust, can be served using thermocouples. Depending on the metal wires used, a thermocouple is capable of measuring temperature in the range –200°C to +2500°C.
Robust
Thermocouples are rugged devices that are immune to shock and vibration and are suitable for use in hazardous environments.
Rapid Response
Because they are small and have low thermal capacity, thermocouples respond rapidly to temperature changes, especially if the sensing junction is exposed. They can respond to rapidly changing temperatures within a few hundred milliseconds.
No Self Heating
Because thermocouples require no excitation power, they are not prone to self heating and are intrinsically safe.
Why Choose Us
One-stop Service
We promise to provide you with the fastest reply, the best price, the best quality, and the most complete after-sales service.
Competitive Pricing
We offer competitive pricing for our services without compromising on quality. Our prices are transparent, and we do not believe in hidden charges or fees.
Best After Service
Provide professional installation and training. Detailed operation manual and video for customer installation. Any problems will be solved within 24 hours. Broken parts will be sent to customer by air during guarantee period.
State-of-the-art Technology
We use the latest technology and tools to deliver high quality services. Our team is well-versed in the and advancements in technology and uses them to provide the best results.
Fixed-point Calibration
Fixed-point calibration for thermocouples involves comparing the output of the thermocouple to a reference temperature from a stable, well-defined source. This can include ice-point cells, triple-point cells, or other high-precision temperature sources. The thermocouple is placed in the reference source, and its output is measured and compared to the known temperature. Fixed-point calibration is a typical thermocouple calibration method. The temperature of a reference point is precisely measured with a calibrated thermometer in this procedure, and the output voltage of the thermocouple at that temperature is then recorded. This process is performed at various reference temperatures to generate a calibration table that can be used to compute the thermocouple's temperature based on its output voltage.
Comparison Calibration
In this method, the thermocouple's output is compared to that of a reference sensor, such as a high-precision platinum resistance thermometer or another calibrated thermocouple. Both sensors are exposed to the same temperature source, and their readings are compared. Any deviations from the reference sensor's output can be used to determine the necessary adjustments or corrections to the thermocouple's measurements. The calibration of thermocouples is required to guarantee that temperature measurements are precise and dependable. There are various thermocouple calibration methods available, each having advantages and downsides.
Electrical Simulation
Electrical simulation for thermocouples involves using a calibrated voltage source or a thermocouple simulator to generate a known voltage that corresponds to a specific temperature. The thermocouple's output is compared to the simulated voltage, and any discrepancies can be used to make adjustments to the thermocouple's measurements. Another approach for thermocouple calibration is electrical simulation. An electrical circuit is used to replicate the thermoelectric behaviour of the thermocouple being calibrated in this procedure. The circuit is intended to provide a voltage output that resembles the voltage output of a thermocouple across a wide temperature range. To obtain a calibration curve, the voltage output is measured and compared to the voltage output of the thermocouple being calibrated.
Software-based Calibration
Some advanced thermocouple instruments provide software-based calibration methods that can automatically adjust the thermocouple's output based on pre-determined calibration data. This approach may involve storing calibration coefficients or correction factors within the instrument's software, which can be applied to the thermocouple's output during measurements.
Food Production
Thermocouples are perfect for the food industry because they supply accurate readings in a few seconds. Food products can be checked in any phase of production. Food production thermocouples are a two piece unit with a handheld readout unit and detachable probe. In the tip of the probe are two wires connected to each other. Flat headed probes measure surface temperatures, needle probes take internal measurements and the air temp of ovens.
Extruders
Extruders require high temperature and pressure. The sensor tip has to be positioned in the molten plastic under high pressure conditions. The thermocouple measures the temperature and is directly installed into the process. These units have high degree of accuracy, with a rapid response time, and can have a type K thermocouple probe.
Furnace
A pilot light is responsible for igniting the furnace burner. The thermocouple shuts off the gas supply when it does not sense a flame and prevents the furnace from receiving gas when the pilot is out. It restricts gas from building up in a furnace and makes the system much safer.
Molten Metal
A molten metal thermocouple can be used in a non-ferrous metal environment to measure temperatures up to 1250° C. They monitor and control the temperature of liquid metals during melt preparation, holding, degassing, and casting operations
Gas Appliances
A thermocouple, on a gas appliance, signals the gas valve that the pilot is lit so it will remain open. The thermocouple is positioned in the middle of the pilot flame. It detects the heat of the flame and generates the voltage that keeps the gas flowing. If the flame goes out, the thermocouple voltage disappears and closes the gas valve.
What are the different types of thermocouples
B-Type Thermocouple
Type B thermocouple comprises of Platinum (30% Rhodium) and Platinum (6% Rhodium) alloy. It has a high-temperature range between 1370 to 1700 °C, making it suitable for applications with very high temperatures like glass production.
E-Type Thermocouple
Type E thermocouple comprises Chromel and Constantan alloys. It has a lower temperature range than type B (0 to 870 °C). They can be used in an inert environment, but they need to be protected against a sulphurous environment. Type E thermocouples are mostly used in power plants.
J-Type Thermocouple
Type J thermocouple comprises of Iron and Constantan. It has a low-temperature range of 0 to 760 °C. This type of thermocouple is used primarily in inert and vacuum environments. One of the most common applications is Injection moulding.
K-Type Thermocouple
Type K thermocouple is made of Chromel and Alumel. It has a temperature range between 95 and 1260 °C. It is best suited for neutral or oxidising environments and is mostly used in refineries.
N-Type Thermocouple
The alloys used for type N thermocouples are Nicrosil and Nisil. Its temperature range is between 650 to 1260 °C. The unique point of this type of thermocouple is that it offers high resistance to degradation due to green rot and hysteresis. Generally, type N thermocouples are used in petrochemical and refineries industries.
R-Type Thermocouple
Type R thermocouples comprise of a combination of Platinum (13% Rhodium) and Platinum and have a temperature range between 870 to 1450 °C. Due to the fact that they are very stable and accurate, they are used in Sulphur recovery units.
S-Type Thermocouple
Type S thermocouples are a mixture of Platinum (10% Rhodium) and Platinum. They have a higher temperature range between 980 to 1450 °C making them perfect for applications involving high temperatures.
T-Type Thermocouple
Last but not least, type T thermocouple comprises Copper and Constantan. The temperature range it has is between -200 to 370°C. It is suitable for inert and vacuum environments, making it perfect to be used in cryogenics and food production.
Thermocouple Working Principle
The working principle of a thermocouple follows the Seebeck effect, or thermoelectric effect, which refers to the process in which thermal energy is converted into electrical energy. The effect describes the electrical voltage that occurs when two different conductors are connected, and how the voltage produced varies with temperature.
The basic design of a thermocouple involves two dissimilar metal wires, each with different electrical properties at different temperatures. The two metals are in contact – Touching, twisted, or welded – At one end; this is the measuring point. At the other end is the connection point, so called because it connects to the voltage reader. When the temperature changes at the measuring point, so does the electron density of each metal wire. This varying electron density is the voltage, which is measured at the connection point.
That thermocouples do not actually measure the absolute Instead, they measure the differential temperature between the measuring point and the connection point. That’s why thermocouples also need a cold junction compensation, which ensures that the ambient temperature at the connection terminals of the cold junction does not alter the measuring result, thus allowing for more accurate readings.
Our Factory
The company is a "New Third Board" listed enterprise, an certified high-tech enterprise, a project undertaking organization of the National Torch Program, a certified enterprise technology center of Chongqing, a 'Specialized, Refined, Differential and Innovative(SRDI)' enterprise, a contract-abiding and trustworthy enterprise, a heat treatment industry technological innovative enterprise, one of the top 10 private scientific and technological innovation enterprises of Beibei District, Class-A tax-paying enterprise, and an Honest Beibei Merchant. Our trademark was assessed as a Famous Trademark of Chongqing.
Certifications
FAQ
Q: What is the difference between a thermocouple and a thermometer?
Q: Is a thermocouple AC or DC?
Q: How do I choose a thermocouple type?
- Temperature range
- Chemical resistance of the thermocouple or sheath material
- Abrasion and vibration resistance
- Installation requirements (may need to be compatible with existing equipment; existing holes may determine probe diameter)
Q: What is the response time of a thermocouple?
Q: What are the accuracies and temperature ranges of the various thermocouples?
Q: Can I use any multimeter for measuring temperature with thermocouples?
Q: What is a thermocouple?
Thermocouples are manufactured in a variety of styles, such as thermocouple probes, thermocouple probes with connectors, transition joint thermocouple probes, infrared thermocouples, bare wire thermocouple or even just thermocouple wire.
Thermocouples are commonly used in a wide range of applications. Due to their wide range of models and technical specifications, but it is extremely important to understand its basic structure, functionality, ranges as to better determine the right thermocouple type and material of thermocouple for an application.
Q: How does a thermocouple work?
If this circuit is broken at the center, the net open circuit voltage (the Seebeck voltage) is a function of the junction temperature and the composition of the two metals. Which means that when the junction of the two metals is heated or cooled a voltage is produced that can be correlated back to the temperature.
Q: Thermocouple probes vs. Thermocouple wire?
Each calibration has a different temperature range and environment, although the maximum temperature varies with the diameter of the wire used in the thermocouple.
Although thermocouple calibration dictates the temperature range, the maximum range is also limited by the the diameter of the thermocouple wire. That is, a very thin thermocouple may not reach the full temperature range.
K Type Thermocouples are known as general purpose thermocouple due to its low cost and temperature range.
Q: How do I choose a thermocouple?
The most commonly criteria used to make that choice are the temperature range, the chemical resistance, the abrasion and vibration resistance and the installation requirements. Installation requirements would also dictate your choice of a thermocouple probe.
There are different types of thermocouples and their applications may vary. An exposed thermocouple will work best when high response times are required, but an ungrounded thermocouple is better in corrosive environments.
Q: How do I know which junction type to choose?
Q: What are the accuracies and temperature ranges of the various thermocouples?
Q: Thermocouple probes vs. Thermocouple wire?
Using a wire style sensor may be fine if the fluid does not attack the insulation or conductor materials, if the fluid is at rest or nearly so, and the temperature is within the capability of the materials. But say that the fluid is corrosive, high temperature, under high pressure or flowing through a pipe, then a probe style sensor, maybe even with a thermowell, will be a better selection.
It all comes down to how best get the thermocouple junction to the same temperature as the process or material you are trying to measure the temperature of, so to get the information you need.
Q: Which is more accurate thermometer or thermocouple?
Q: How many volts does a thermocouple put out?
This small value of voltage, usually around 25 – 30 DC millivolts, provides the power to hold the pilot light valve open during normal operation. The types of metals used in the construction of the thermocouple depend upon the values of temperature they are to be subjected to.
Q: What is the most reliable thermocouple?
Q: What is the best thermocouple for high temperature?
Q: How do you know if you have a bad thermocouple?
Q: How do you test a thermocouple with a magnet?
Q: What happens if a thermocouple fails?
As one of the leading assemble noble-metal thermocouple manufacturers in China, we warmly welcome you to buy assemble noble-metal thermocouple made in China here from our factory. All customized products are with high quality and competitive price.
