Products Description

Thermal resistance is one type of widely used industry thermometer, can be treated as standard thermometer. Mainly including pt100,pt1000,Cu50,Cu100 types, can be assembly and sheath structures. For platinum resistance, the highest accuracy is ±0.1℃(AA class),the highest using temperature is 600℃.For Copper resistance, the highest accuracy is ±0.3℃, the highest using temperature is 150℃.Thermal resistance with high accuracy and low price, be widely applied for kinds of industries production process which below 500℃.wzp 230 pt100is one of the basic type.

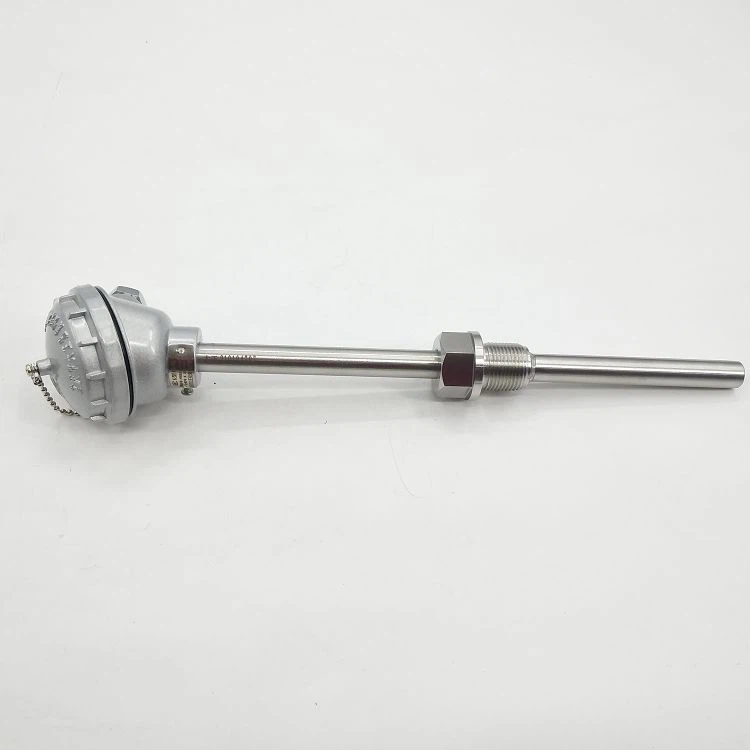

Product Name	WZP 230 pt100
Grade	B class
Wire System	3-wire Pt100

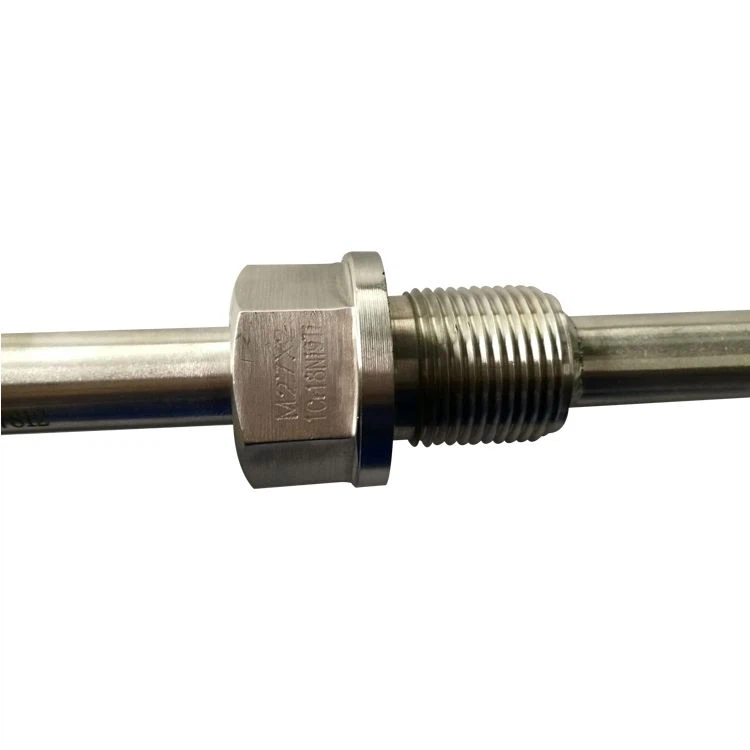

Process connection	M27X2 fixed thread
Wire Connection	Water-proof head
Diameter	16mm
Length	Specify total length and immersion length
Tube	SUS304

How to choose rtd

1) Protective Tube Materials: 1Cr18Ni9Ti is a common choice. When encountering corrosive circumstance, SUS316L could be put into use. Tantalum tubes, Hartz alloy tubes, PTFE sleeves, and some others are recommended to deal with sulfuric acid, nitric acid, hydrochloric acid, and other strong oxidant environment.

2) Diameter & Length of Protective Tubes: The larger the tube diameter and thicker the wall thickness, the longer the thermal response time. Therefore, as long as there is no strength requirement for the tube, smaller diameter MIMS platinum rtd are recommended. Thermistor only measures the average temperature across the RTD element covered area, the insertion length should be considered all things rationally. Usually, the total length is the sum of its insertion length plus 150mm for a terminal enclosure. Need 100mm or more length in the target substance to ensure proper measurement.

3) Terminations: The choice of termination should be convenient and reliable minded. There are ceramic wiring blocks, connectors, protective caps with compensation wires, protective caps with metal sleeves, and compensation wires to choose for termination of MIMS rtd. For assembly rtd, there are terminal blocks and binding posts that could be picked from. The purpose of various terminal enclosures is to meet dustproof, waterproof, flameproof, and other requirements. The choices are waterproofing enclosures, flameproof terminal enclosures, mobile display embed terminal enclosures and multi-point enclosures.
