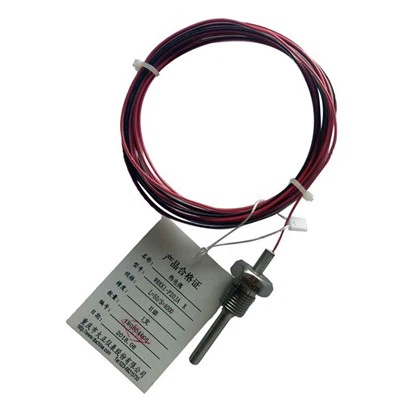

Mineral Insulated Thermocouple K Type Spring Load

Type Codes: K, N, E, J, T.
MIMS Sheath Materials: Stainless steel, heat-resistant steel, high-temperature alloy, corrosion-resistant alloy, etc.
MIMS Cable Diameters: For thermocouple, φ1, 2, 3, 4, 5, 6, 8, 10.
Length: Minimum no lesser than 50mm.
Wiring Methods: Simple type, plug type, waterproof type, explosion-proof type, etc.

Products Description

Mineral Insulated Thermocouples (MITs) are highly reliable temperature sensors that are widely used in various industries. Among different types of thermocouples, K-type thermocouples are commonly used due to their wide temperature range and accuracy. The long flexible probe of MITs makes them suitable for measuring temperature in hard-to-reach areas.

MITs offer fast response times due to their small diameter and high thermal conductivity. They can accurately measure temperature changes in real-time, making them ideal for applications requiring precise temperature control. The spring-protected wire also ensures their durability, making them long-lasting and resistant to damage from harsh environments.

In conclusion, MITs are an excellent choice for temperature measurements in a wide range of applications. Their fast response, accuracy, and durability make them an ideal solution for temperature measurement needs. So, if you want to ensure accurate temperature measurements in your manufacturing process, you should consider mineral insulated thermocouples.

Technical Datas

Type Codes: K, N, E, J, T.

MIMS Sheath Materials: Stainless steel, heat-resistant steel, high-temperature alloy, corrosion-resistant alloy, etc.

MIMS Cable Diameters: For thermocouple, φ1, 2, 3, 4, 5, 6, 8, 10.

Length: Minimum no lesser than 50mm.

Wiring Methods: Simple type, plug type, waterproof type, explosion-proof type, etc.

Installation Methods: None, threaded installation, flange installation, etc.

Thermal Response Time: The lesser the sheath diameter, the shorter the thermal response time. τ0.5≤30s is a common range.

Relative Convenience: MIMS structure, not able to be disassembled, easily bent, easy to use. MIMS thermocouples could take the role of assembly thermocouples on most occasions, and could be even treated as the core thermocouple wire for assembly type for further endurance. MIMS cable is suitable for mass production.

Mineral insulated thermocouple Limit Of Error

Thermoelement	Type	Limits Of Error(±℃)/Effective Temperature Range(℃)
Thermoelement	Type	1 class	2 class	3 class
NiCr10-NiSi3	K	1.5 or 0.4%t/-40~1000	2.5 or 0.75%t/-40~1200	2.5 or 1.5%t/-40~200
NiCrSi-NiSiMg	N	1.5 or 0.4%t/-40~1000	2.5 or 0.75%t/-40~1200	2.5 or 1.5%t/-40~200
NiCr-Constantan	E	1.5 or 0.4%t/-40~800	2.5 or 0.75%t/-40~900	2.5 or 1.5%t/-40~200
Fe- Constantan	J	1.5 or 0.4%t/-40~750	2.5 or 0.75%t/-40~750	--
Copper- Constantan	T	0.5 or 0.4%t/-40~350	1.0 or 0.75%t/-40~350	1.0 or 1.5%t/-200~40
