Type S/R Photovoltaic Special Profile Thermocouple

I. Core Parameters

II. Product Features

Dual Advantages of High Temperature Resistance and High Precision: The operating temperature covers 0~1100℃ (up to 1200℃), with a minimum measurement accuracy of ±0.5℃, meeting the high-temperature and high-precision temperature measurement requirements of photovoltaic equipment, and featuring strong data stability.

Multi-point Gradient Monitoring: Supports multi-point temperature measurement design of 3~6 points (customizable to 3~7 points), which can accurately capture the temperature gradient at different points on the profile and directly feed back the comprehensive temperature distribution of workpieces such as silicon wafers.

Flexible and Durable Structure: Equipped with stainless steel metal shielded wire, it has a simple structure and is easy to use. It can be bent arbitrarily without easy breakage, protecting the wire from damage and adapting to complex installation spaces.

Adaptable Protective Material: The combination of quartz protection tube and high-purity corundum core has high temperature resistance and strong chemical stability, which can resist the harsh environment in the oxidation diffusion furnace and prolong the service life.

Empowered by Exclusive Technologies: Equipped with proprietary technologies such as multi-point thermocouple structure, cold junction structure and terminal packaging structure, it accurately meets the stringent temperature sensing requirements of diffusion furnaces for photovoltaic equipment.

III. Related Component Specifications

Thermocouple Core

Model: Type S (Platinum-Rhodium 10 - Platinum, compliant with IEC 60584 standard), Type R noble metal thermocouple cores, ensuring temperature measurement accuracy and stability at high temperatures.

Wire Specification: Standard φ0.35~0.5mm, optional 0.3mm×2 double-wire design with a solder joint diameter of 1mm, featuring excellent electrical conductivity and accurate signal transmission.

Protection and Core Components

Protection Tube: Made of quartz, length ≤4000mm, diameter φ12~18mm, with high temperature and corrosion resistance, suitable for high-temperature working conditions.

High-purity Corundum Core: Default diameter 3mm, customizable to other specifications, providing stable internal support and insulation protection.

Connection and Protection Components

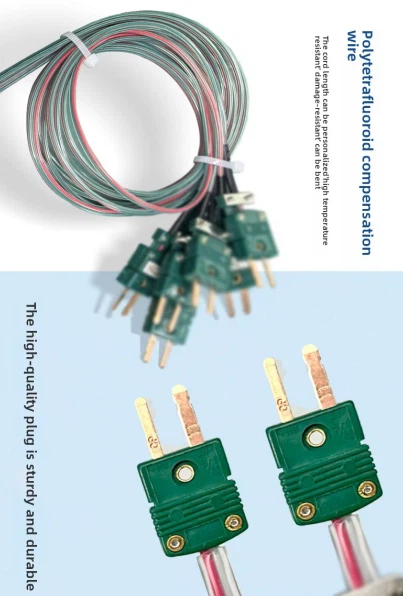

Terminal Block: Small Connector, with stable contact and convenient wiring, adapting to equipment interfaces.

Compensation Wire: Specification SC-2×0.5FPF, effectively compensating for temperature loss and ensuring full-link temperature measurement accuracy.

Auxiliary Accessories: Stainless steel metal shielded wire (enhancing protection and flexibility), clamping handle (facilitating installation and operation), preventing the wire from breaking easily.

Assembly Structure

Multi-point combined assembly design, each temperature measurement point works independently and cooperatively, requiring professional technology to ensure assembly accuracy and temperature measurement accuracy.

IV. Application Scenarios

This product is specially designed for photovoltaic equipment, and is mainly used in high-temperature and high-precision temperature measurement scenarios, including:

Photovoltaic Cell Manufacturing: In-furnace temperature measurement of oxidation diffusion furnaces, directly sensing the temperature of silicon wafers to ensure the temperature stability of key processes such as texturing, diffusion and oxidation, serving enterprises such as LONGi and JET Solar.

Semiconductor Manufacturing: Profile temperature monitoring of high-temperature furnaces in semiconductor chip production, providing a basis for temperature control of precision processes such as lithography and coating.

Specialized Equipment Temperature Measurement: Adapted to electronic manufacturing equipment of enterprises such as China Electronics Technology Group Corporation and Han's Laser, used for dynamic temperature control of specialized equipment such as oxidation diffusion furnaces.

Industrial High-temperature Profile Temperature Measurement: Multi-point temperature distribution monitoring of workpieces such as metal rods, pipelines and plates, adapting to extreme industrial high-temperature environments.

V. Product Advantages

Strong Scenario Specificity: Specially designed for photovoltaic equipment, from material selection to structural design, it fully adapts to the high-temperature and high-precision temperature measurement requirements of oxidation diffusion furnaces.

Excellent Temperature Measurement Performance: It has both a wide temperature range (0~1200℃) and high measurement accuracy (minimum ±0.5℃). The multi-point design can capture temperature gradients, meeting the stringent temperature requirements of precision manufacturing.

Durable and Easy to Install: The stainless steel shielded wire is flexible and bendable without easy breakage. Combined with the clamping handle, it is convenient for installation and operation. The complete protection components adapt to complex industrial environments.

Dual Guarantee of Technology and Quality: It has a number of proprietary technologies. The manufacturer has mature noble metal thermocouple manufacturing technology. The products have passed strict testing, serving many well-known enterprises in the industry with abundant application cases.

Flexible Customization: The number of measuring points (3~7 points), corundum core diameter, wire specification, etc., can be customized to accurately match the needs of different equipment and working conditions.

VI. Frequently Asked Questions (FAQs)

What is the core difference between Type S/R photovoltaic special profile thermocouple and ordinary Type S/R thermocouple?

Answer: The core difference lies in scenario adaptation and structural optimization. This product is a special model for photovoltaic equipment, equipped with multi-point temperature measurement and flexible shielded wire design, adapting to the silicon wafer temperature measurement and complex installation needs of oxidation diffusion furnaces. Ordinary Type S/R thermocouples are mostly general-purpose single-point temperature measurement products without exclusive adaptation design for photovoltaic scenarios.

The product is marked with an operating temperature of 0~1100℃, why can it be adapted to 1200℃ in some scenarios?

Answer: 0~1100℃ is the standard stable operating temperature range. The product materials (Platinum-Rhodium 10 - Platinum, quartz) have a high-temperature resistance capacity of 1200℃, and can work normally in a 1200℃ environment for a short time. However, for long-term use, it is recommended to control the temperature within 0~1100℃ to ensure measurement accuracy and service life.

What is the function of the high-purity corundum core? Can it be replaced with other materials?

Answer: The high-purity corundum core mainly provides internal support and insulation protection. It also has the characteristics of high temperature resistance and strong chemical stability, which is highly compatible with the working conditions of photovoltaic furnaces. It is not recommended to replace it arbitrarily. If it is necessary to adapt to special environments, you can contact the manufacturer to customize a core made of special materials.

The product can be bent arbitrarily, will it affect the temperature measurement accuracy?

Answer: No. The product adopts flexible stainless steel metal shielded wire. Bending will not damage the internal thermocouple core and wire, nor will it affect the transmission of thermoelectric signals. It can be safely adapted to complex installation spaces.

What about the product quality guarantee and after-sales support?

Answer: The product is manufactured by professional manufacturers with a complete quality inspection system and provides corresponding quality assurance services. Professional technical consulting support is available for technical problems during installation, use and assembly. Meanwhile, customized solutions can be provided according to the equipment requirements of customers.
