Pt1000 Temperature Sensor

Sensor element: Pt100,PT500,Pt1000
Accuracy: Class A、Class B
RTD probe: Ø5、Ø6；SUS304
Connection cable: PVC 85℃，PUR 105℃，Silicone 150℃，PTFE 250℃
Cable cross-section: 0.22mm²，0.34mm²，0.50mm²

Products Description

1.Meets the requirements as per DIN EN 1434

2.Approval for 2014/30/EU Electromagnetic Compatibility Directive

3.Approval for RoHS

4.Paired and calibrated as per China calibration regulations JJG225-2001

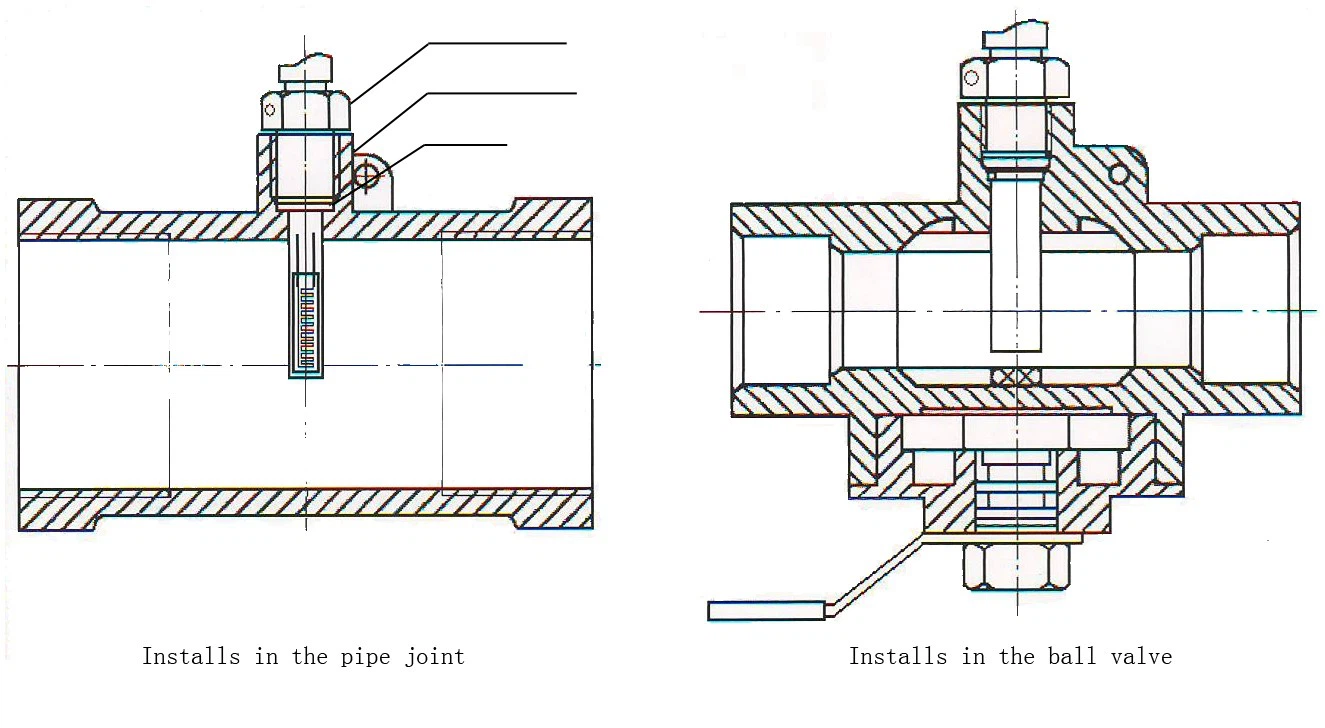

Pt1000 temperature sensor is used for temperature measurement in closed-loop pipe systems,and should be installed in DN15,DN20,DN25 pipe systems.The temperature probes are available paired and calibrated.

Note:The system need no longer be discharged at the time of the regular exchange once the certification period has elapsed.

Technical data

Sensor element	Pt100,PT500,Pt1000
Accuracy	Class A,Class B
RTD probe	Ø5,Ø6;SUS304
Connection cable	PVC 85℃,PUR 105℃,Silicone 150℃,PTFE 250℃
	2-wire,3-wire,4-wire
	Wire end ferrules
Cable cross-section	0.22mm²,0.34mm²,0.50mm²
Cable Termination	Tin-plated wires,Terminal cap
Process connection	Pipe thread,Copper M10x1
Length of cable	1500mm(standard),as per client's demand
Fitting length	45 to 85 mm,27.5(45)mm be standard
Temperature	0 to 150℃
Temperature difference	△Tmin ≤3℃
	≤0.1℃ within one pair
Insulation resistance	≥100MΩ under normal condition
Protection class	IP54
Ambient conditions	0 to 70℃

Platinum temperature probe as per IEC 751

Calibration	Nominal resistance R0(Ω)	Temperature coefficient of resistance(α)	Temperature tolerance error(℃)
Pt10	10	A class 0.003851±0.000006 B class 0.003851±0.000012	A class ±(0.15+0.2%\|t\|) B class ±(0.3+0.5%\|t\|)
Pt100	100
Pt500	500
Pt800	800
Pt1000	1000

The connection cable length

Cable cross-section	Max.cable length Pt100	Max.cable length Pt500	Max.cable length Pt1000
0.22mm²	2500mm	12500mm	25000mm
0.34mm²	3500mm	17500mm	35000mm
0.50mm²	5000mm	25000mm	50000mm
